CubeCell (TM) is a new product series made by Heltec team, mainly for LoRa/LoRaWAN node applications.

CubeCell (TM) series is based on ASR605x (ASR6501, ASR6502), those chips are already integrated with the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262. We have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably, can easily connect lithium batteries and solar panels.

HTCC-AB02 is a Dev-Board. Friendly designed for developers, easy to verify communication solutions.

Features:

• Perfect Arduino-Compatible!
• CE and FCC certification;
• Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262;
• LoRaWAN 1.0.2 support;
• Ultra low power design, 3.5uA in deep sleep;
• Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
• Good impendence matching and long communication distance.

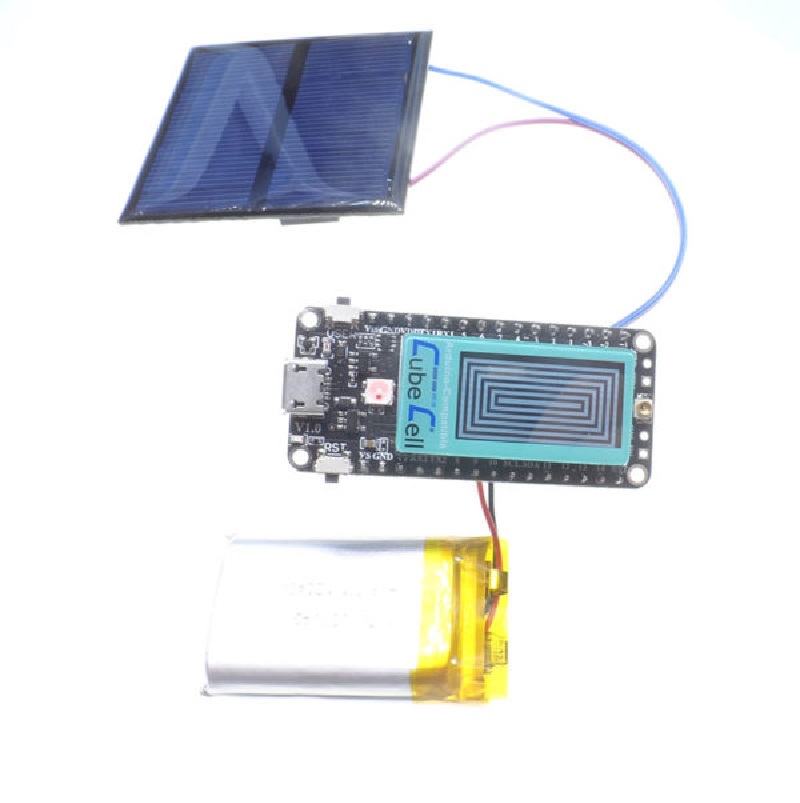

• Onboard solar energy management system, can directly connect with a 5.5~7V solar panel;
• Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
• Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;

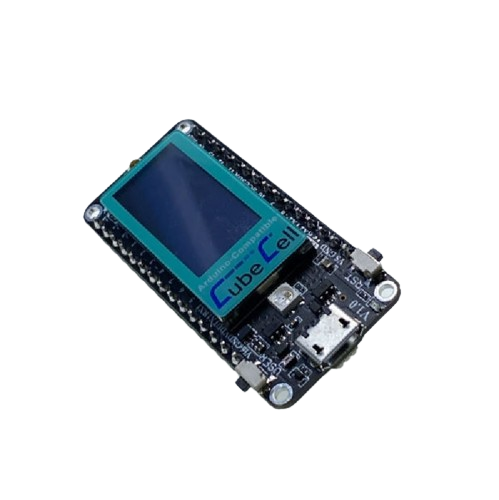

• Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information

Package Includes:

1 x CubeCell AB02 Dev-Board Plus

1 x Antenna

1 x SH1.25×2 Battery Connector
