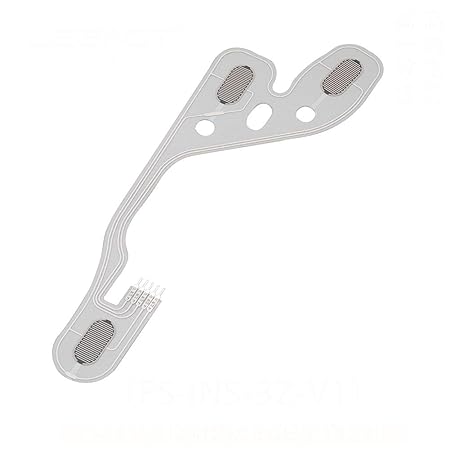

The FS-INS-3Z foot pressure sensor is a flexible membrane pressure sensor with three phase independent sensing zones, and the output resistance of the sensing zone changes correspondingly with changes in external pressure. The plantar pressure sensor is excellent in comprehensive mechanical properties. Polyester beach film, high-conductivity material and nano-scale pressure sensitive material. The bottom layer is a flexible film and a conductive layer on it. The top layer is a flexible film and a pressure-sensitive material compounded on it. Both are separated by double-sided tape. In the sensing area of the upper and lower layers, when the sensing area is under pressure, the lines separated from each other are turned on, and the output resistance of the metal port changes correspondingly with the pressure.
Features :

1. Range:0.1kg-10kg
2. Trigger force: 100g
3. Thickness: 0.4mm
4. Style: flake, flexible
5. Resistance when not triggered: greater than 10MΩ
6. Activation time: less than 0.01S
7. Response time: <10ms
