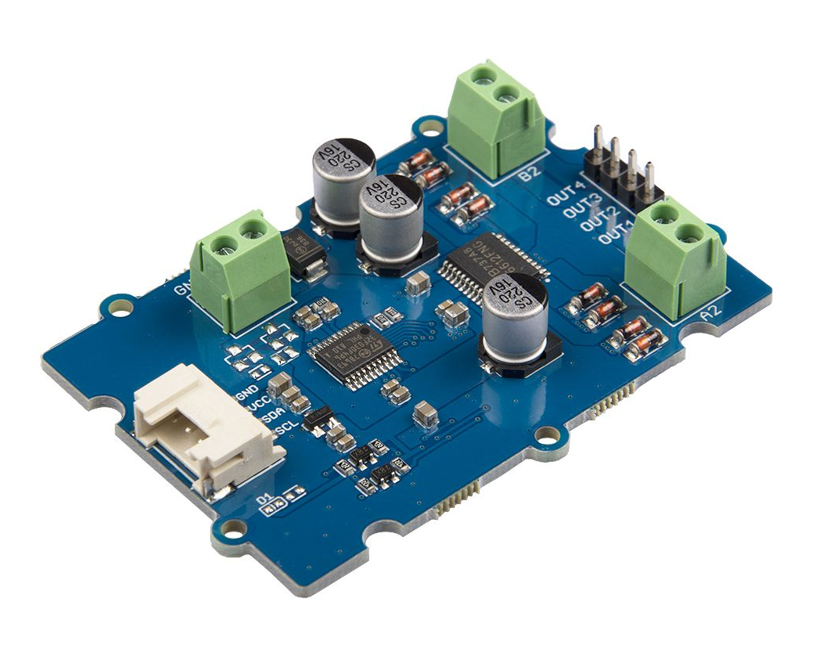

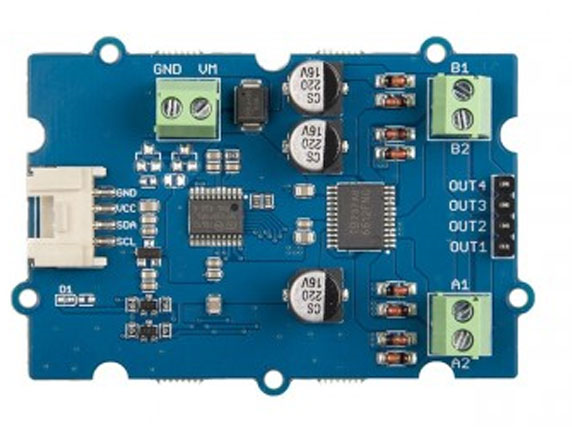

The Grove I2C Motor Driver (TB6612FNG) can drive two DC motors up to 12V/1.2A or drive one stepper motor up to 12V/1.2A. With the on-board MCU, it can work with Arduino easily via the Grove I2C interface.

This diver board is based on TB6612FNG, which is a driver IC for DC motor and a stepper motor with output transistor in LD MOS structure with low ON-resistor. Two input signals, IN1 and IN2, can choose one of four modes such as CW, CCW, short break, and stop mode.

Features:

1. Onboard MCU
2. CW/CCW/short brake/stop function modes
3. Built-in thermal shutdown circuit and a low voltage detecting circuit
4. Standby (Power save) system

 Applications:

1. DC motor control
2. Stepper motor control

Package Includes:

1. 1 x Grove – I2C Motor Driver (TB6612FNG)
2. 1 x Grove Cable
