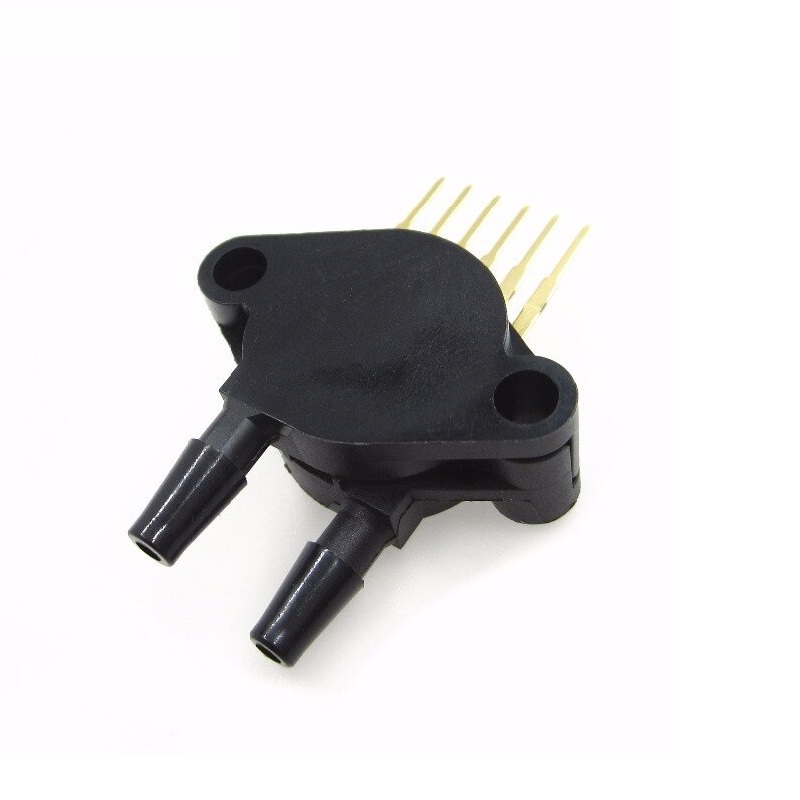

MPX5010DP Pressure Sensor 0-10KPa Transmitter Sensor module is a dual port, an integrated silicon pressure sensor in 6 pin SIP package. This piezoresistive transducer is state of the art monolithic silicon pressure sensor; designed for a wide range of applications.

It is ideally suited for a microprocessor; and microcontroller-based system. This transducer combines advanced micromachining techniques; thin-film metallization, and bipolar processing to provide an accurate; high-level analog output signal that is proportional to applied pressure. The axial port has been modified to accommodate industrial grade tubing.

Features :

• On-chip signal conditioned, temperature compensated and calibrated.
• Differential configuration.
• 5.0% maximum error over 0°C to 85°C.
• Durable epoxy unibody.
• Temperature compensated over -40°C to 125°C.
• Patented silicon shear stress-strain gauge.
• Pressure range from 0KPa to 10KPa.
• Supply voltage range from 4.75VDC to 5.25VDC.
• The sensitivity of 450mV/kPa.
• Response time of 1ms.
• Mounting hole diameter: M4 x 11 (height).

Applications :

• Sensing & Instrumentation.
• Consumer Electronics.
• Portable Devices.
• Automation & Process Control.
• Medical

Package Includes :

• 1 x MPX5010DP Pressure Sensor 0-10KPa Transmitter Sensor.
