The GW1NSR-LV4C onboard the Lichee Tang Nano 4K development board is a system-in-package chip with embedded ARMCortex-M3 hard core processor, 64Mbit PSRAM, 4K Lut logic resources, and onboard 32Mbit Nor Flash.
The Lichee Tang Nano 4K development board has a BL702 chip onboard, which provides JTAG debugging for the GW1NSR. The development board can be directly connected to a computer for development without the need for an external debugger and clock input.

Features:

• Lichee Tang Nano 4K is a simple development board based on GOWIN Semiconductor’s Bee series GW1NSR -LV4C
• The design of the development board is small and exquisite, and all the resources of the chip are drawn out
• On-board JTAG USB download circuit, DVP, HDMI socket and its circuit, etc.

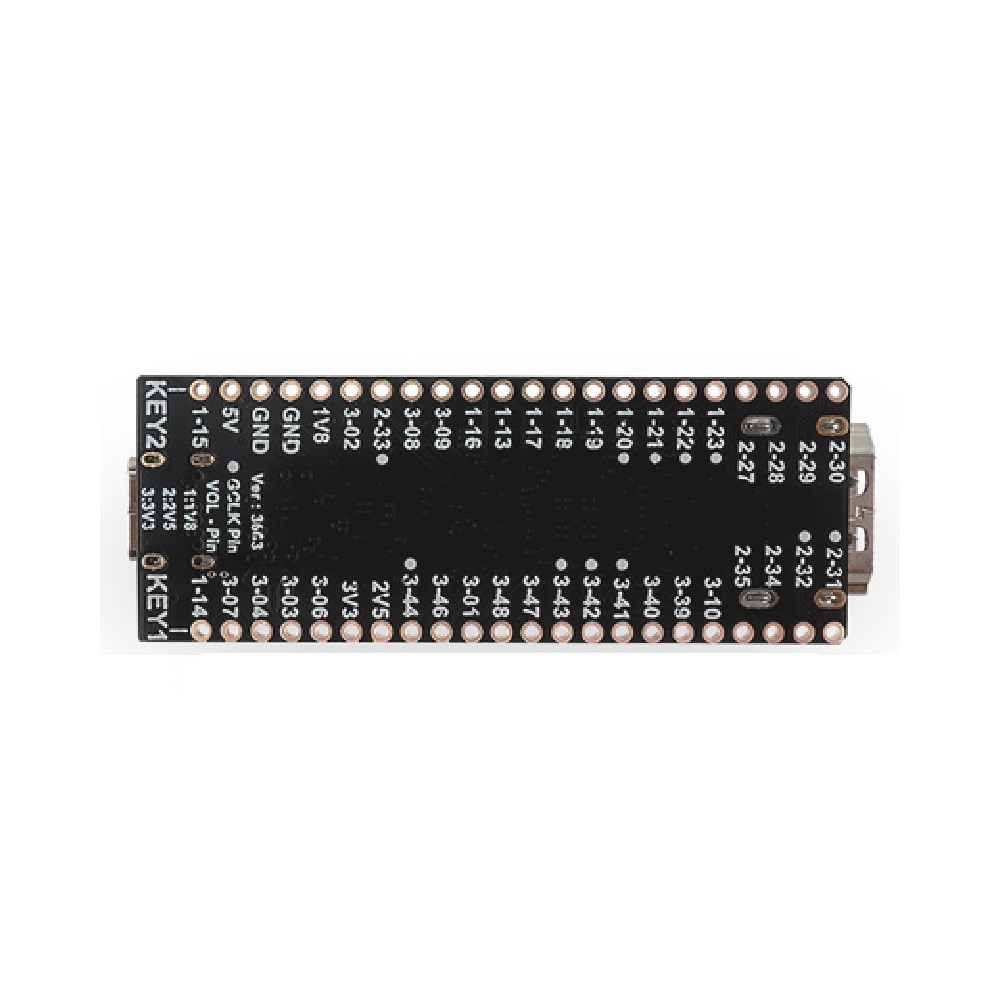

• All IO resources are exported, which is convenient for developers to expand and use
• Ideal for design and experimentation with small digital logic

Specifications:

• Type: Voltage Regulator
• hard core processor: Cortex-M3
• logical unit: 4608
• register: 3456
• Block SRAM (bits): 180K
• User Flash (bits): 2
• I/O Bank Total: 4

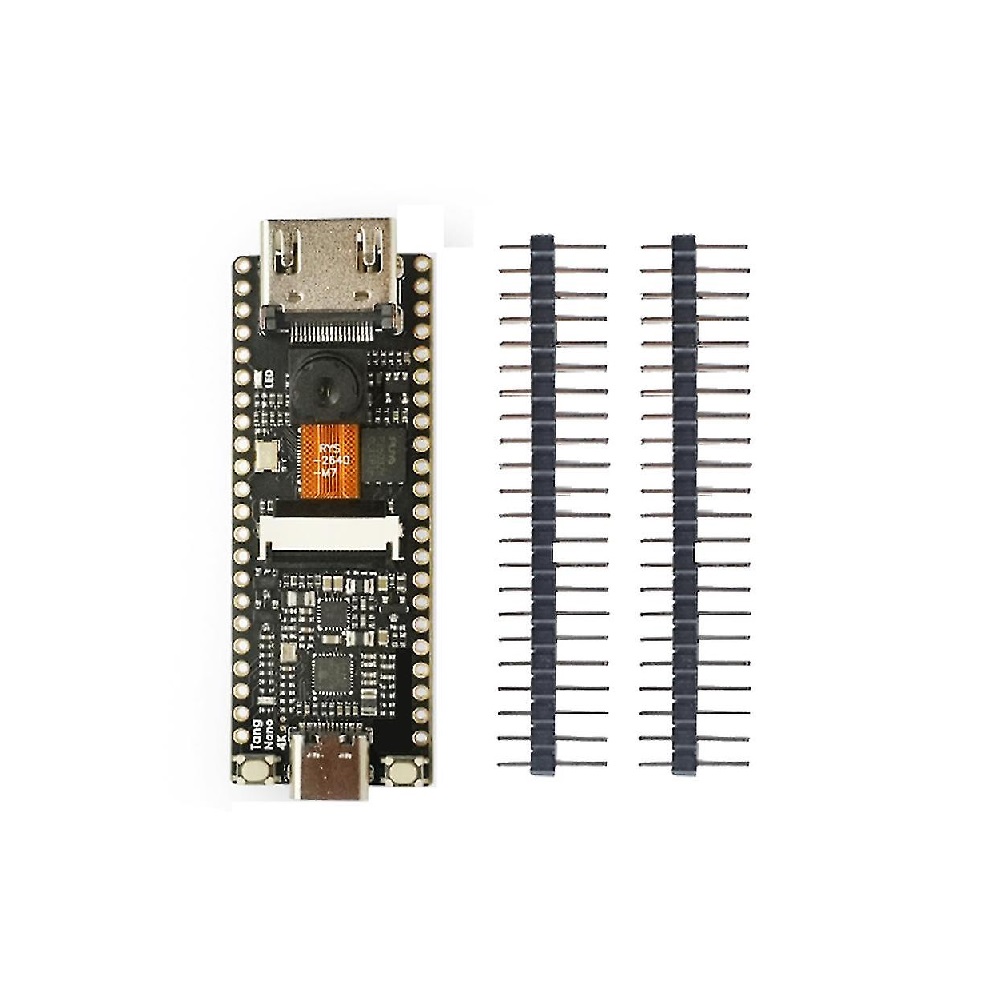

Package Includes:

• 1 x Development board
• 1 x OV2640 Camera
• 2 x Pin header
