This is DC Motor Governor PWM Variable Speed Control Switch 6V-90V 15A.

This DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). It’s perfect for applications like fans, etc. providing a nice adjustment of motor speed.

How to use:

• First, remove the potentiometer. (you may take it down from one side of the circuit board or potentiometer side down under your need);

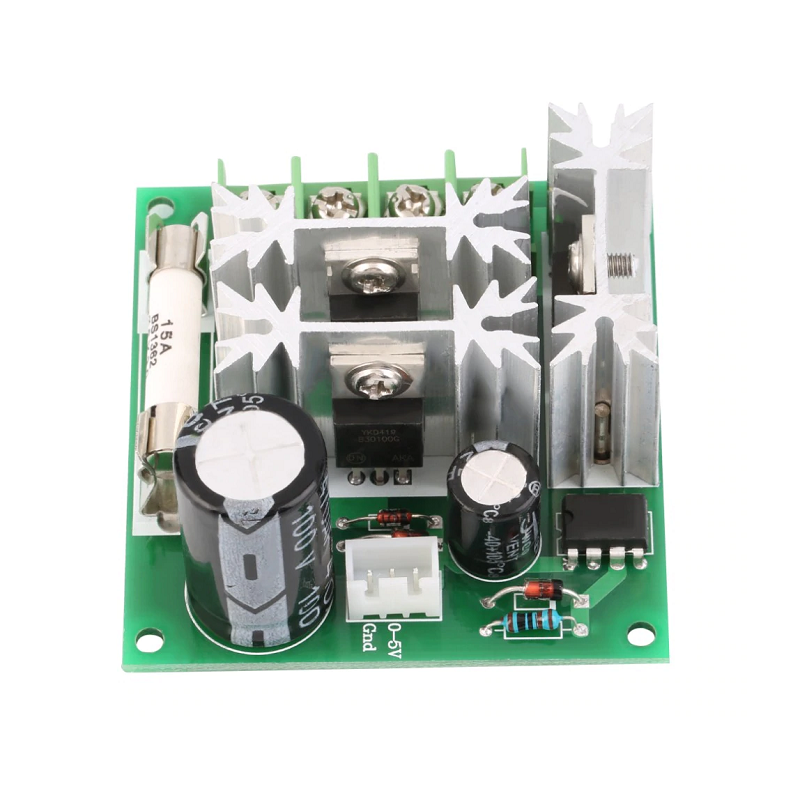

• Second, connecting 0-5V DC control signal to the middle pin marking 0-5V;
• Thirdly, connecting the earth wire of 0-5V DC control signal to the connecting piece on the pin marking GND;

Note:

• This can NOT be used to the BRUSHLESS motor.
• Do not reverse the positive and negative terminals of the DC power supply, otherwise, the governor may be damaged.
• The motor can be positive or negative, regardless of when the direction is inconsistent with expectations, can be changed by adjusting the direction of the line sequence.
• Adjustment potentiometer knob to change the governor output duty cycle, the motor speed change.
• With the use of a 0-5V external voltage control line, the speed controller supports the use of an external DC voltage control.

Features:

• Wide operating voltage: DC 6V-DC 90V, max. power: 1000W.
• A PWM speed controller, enables you to control the speed of DC motors smoothly.
• This motor speed control switch can control the motor speed from between 0% -100%.
• Support PLC control, stable performance, high efficiency and low noise.
• Suitable for applications like fans, etc. providing nice adjustment of motor speed.

Package Includes:

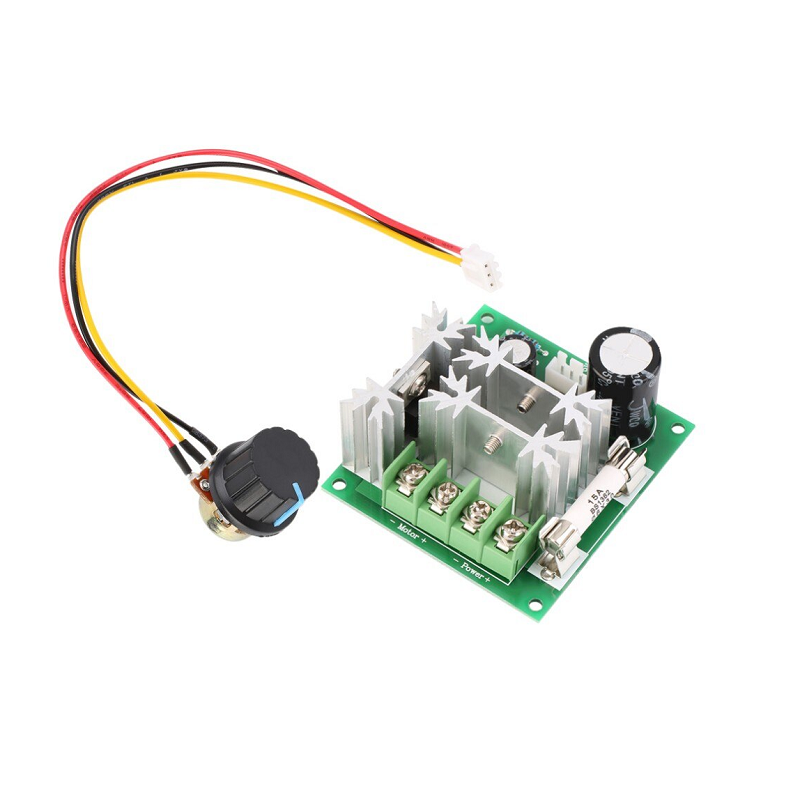

• 1 x DC Motor Speed Controller
• 1 x Potentiometer with connector
