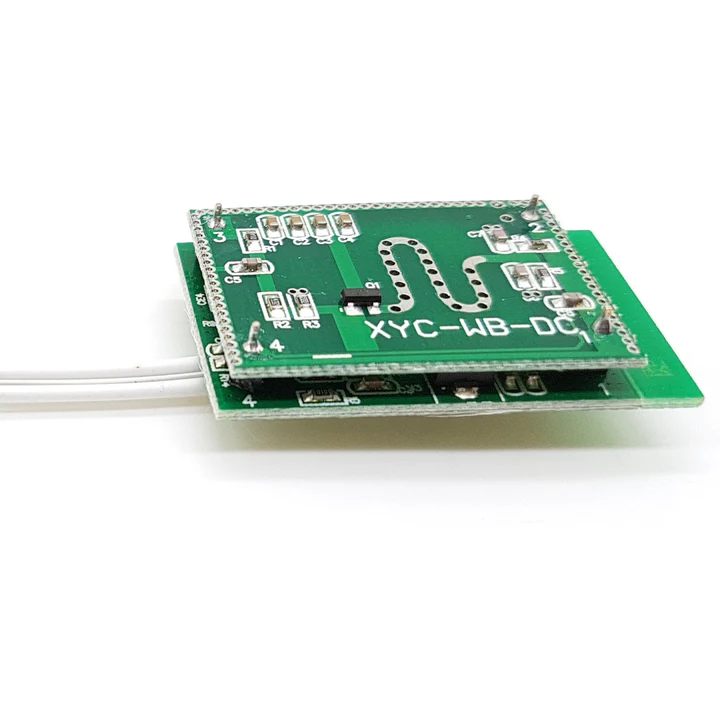

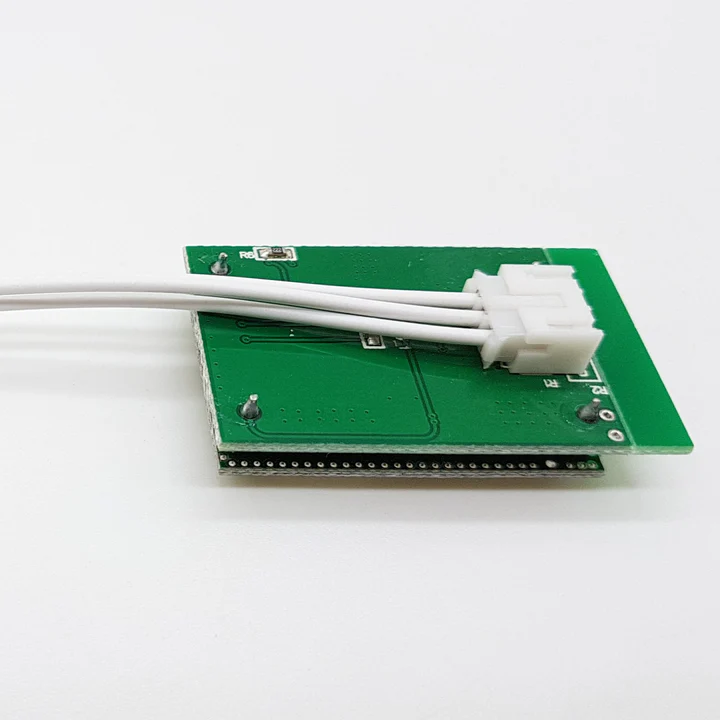

It uses Doppler radar technology, with auto-sensing capabilities to control other product,High sensitivity, sensor distance, reliability, wide angle sensor, Wide supply voltage range and other characteristics. Widely used in lighting situations, anti-theft alarm situations.

Features:

• Microwave sensors using planar antenna and receiving echo.
• The switch is active sensors.
• The sensors emit a high-frequency electromagnetic waves and receives their echo.
• The sensors detect changes within echo.
• The sensors detect tiny movement in detect range.
• Send signal to MCU and execution instruction.
• Signals are likely to be detected through the door, glass and thin walls.
• It will get best probe result if person or object when moving toward the sensor.
• This product is a strong anti-jamming capability, almost without wind, heat and other environmental factors foreign interference

Parameter:

• working voltage: 3.3-20VDC
• standby quiescent current: <3mA
• transmit power: <2mW
• the working environment temperature: -20°~+80°
• Trigger: Repeat Trigger (default)
• the output signal: TTL level; high->3.3V/Low->0V
• detection angle: 360°(spherical) no dead ends
• detection range: 6-9 meters (when ordering optional). The default setting 8 meters
• the working delay: 1 second to hundreds of seconds, the default setting 30S

Application:

• Security
• Intelligent Lighting
• Body sensors toys
• Industrial automation and control
• Auto-sensing electrical equipment
• Battery-powered automatic control
